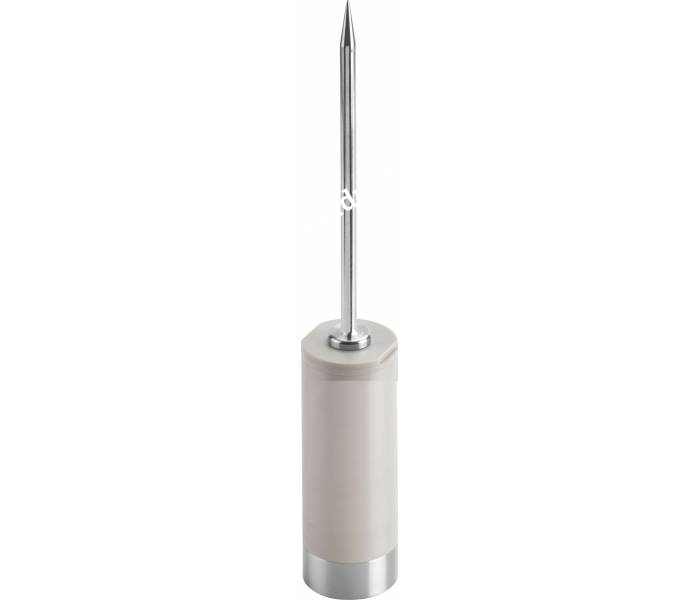

Wireless Temperature Data Logger with 100 mm Probe, 5 mm Diameter – S-RADIO 100/5

Wireless Temperature Data Logger with 100 mm Probe, 5 mm Diameter – S-RADIO 100/5

• Manufacturer: Tecnosoft – Italy

• Model: S-RADIO 100/5

• Code: TS01SR5

1. Product Information

The S-Radio is a wireless temperature data logger capable of measuring temperatures from -40°C to 140°C.

Along with recording data, the device can transmit temperature data via radio waves for real-time monitoring and graphing.

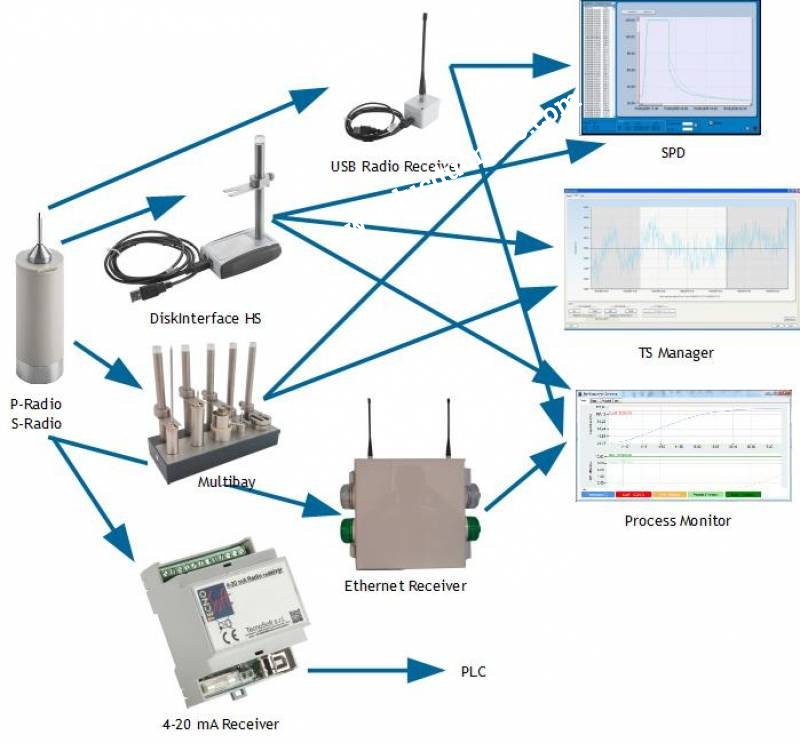

The device can be configured and data transmitted to a computer using either the DiskInterface HS or Universal Multibay. Real-time data is transmitted via a USB Radio Receiver and displayed on the SPD software.

The device is supplied with a calibration certificate at the following temperature points: 25/50/75/100/121/140°C. Extended calibration from -40°C to 140°C is available upon request.

Specifications:

• Dimensions: Logger body: H76 x Ø30 mm

• Material: Stainless steel AISI 316L and PEEK plastic (food-safe)

• Probe Dimensions:

  • Probe Base: Height 13 mm x Ø15 mm

  • Probe: Length 100 mm x Ø5 mm

• Temperature Range: -40°C to 140°C

• Resolution: 0.01°C

• Accuracy: ±0.1°C (within the calibration range)

• Standard Calibration Points: 25/50/75/100/121/140°C

• Memory: 121,171 data points

• Recording Interval: From 1 second and in multiples of 1 second

• Power Source: Replaceable battery (supports approximately 3,800,000 recordings with a 1-second interval at 25°C; battery life may decrease at lower temperatures)

• Protection Rating: IP68

• Compatible with: DiskInterface HS, Universal Multibay, USB Radio Receiver

• Software: SPD (free), TS Manager

• Certification: Calibration certificate provided

Optional Accessory:

• Real-time Data Receiver: USB Radio Receiver, Code: TS04RR

​
