• Manufacturer: Tecnosoft – Italy
• Model: PressPDF-L
• Code: TS20PPL

Description:

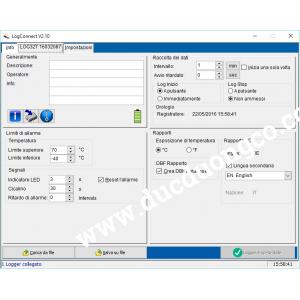

The PressPDF-L is a USB data logger that records temperature, humidity, and pressure, featuring an LCD screen and an audible alarm when limits are exceeded. It automatically generates PDF reports that can be viewed without any additional software (optional software available for Windows). Calibration certificates can be purchased separately.

Specifications:

• Dimensions: 91.5 mm x 42 mm x 20 mm

• Temperature Measurement Range: -40°C to +70°C

• Temperature Resolution: 0.1°C

• Temperature Accuracy: ±0.5°C (from 0°C to +60°C); Outside this range: ±1°C

• Humidity Measurement Range: 0% to 100% RH (non-condensing)

• Humidity Resolution: 0.1%

• Humidity Accuracy: ±3% RH (from 40% to 60% RH); ±3.5% RH (from 20% to 40% RH and 60% to 80% RH); Outside this range: ±5% RH

• Pressure Measurement Range: 300 mbar to 1100 mbar

• Pressure Resolution: 0.1 mbar

• Pressure Accuracy: ±1 mbar (from 900 mbar to 1100 mbar); ±0.5%

• Memory Capacity: 60,000 data points

• Recording Interval: From 1 recording every 30 seconds to 1 recording every 24 hours

• Battery Type: 1 x 1/2AA, 3.6V battery

• Battery Life: Approximately 4 years (with a recording interval of 15 minutes); user-replaceable

• Software Requirements: Windows 7, 8, 10 (32-bit and 64-bit)

Optional: Calibration certificate for temperature (5°C, 30°C, 50°C) and humidity (30%, 50%, 70% RH) available.

• Calibration Certificate Code: TS20PHC
