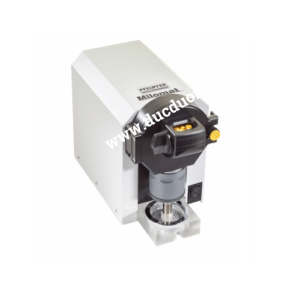

Pfeuffer Pellet Mill

Pfeuffer Pellet Mill

• Manufacturer: Pfeuffer – Germany

• Model: Pellet Mill

Product Description:

The Pellet Mill is a sample grinding machine designed to reduce the coarse size of pellet, cake, or grain materials. The ground sample is then used for laboratory analysis.

The sample material is placed into the hopper and fed through the filling unit into the grinder. The rotating and stationary grinding elements crush the sample, which then falls through the mesh screen and into the collection container. For finer samples, different mesh sizes can be selected.

Technical Specifications:

• Application: Laboratory grinding machine

• Sample chamber capacity: 3 kg

• Type of sample: Pellets, cake, grain

• Power supply: 3-phase, 400VAC, 50Hz

• Power consumption: 0.55 kW

• Dimensions: 356 x 438 x 556 mm

• Weight: 25 kg

• Operating temperature: -20 to 40°C

• Operating humidity: 20-80%, non-condensing
