• Suitable for Researching with Drying, Plasticity, Batch Measuring, New Material and Ceramic Sintering
• Preventing Damages of the Heater from Contact of Vapor and Corrosive Gas by Installing Fire Proof Molded Heating Element
• Available to Rapid Temp. Increasing and Uniform Temp. Distribution by 3 Side Heating Walls inside Design
• Auto Tuning, Temperature Calibration, Self-diagnosis Function Available
• Installed Duct Hole for Exhaust Gas and Vapor inside
• Installed Safety Device for Circuit Protection from Over Current and Over Heat
• Installed Port for RS485 PC Communication.
• Automatical Fault Sensing System (By itself can detect an unusual situation.)
• Double Overheat Safety Device – 1st Controller Overheat Alarm, 2nd Overheat Shut Off Circuit
• Digital Over Temperature Safety Device
• 2 type Timer Function Installed
• Program Type (2 Pattern, 18 Segment)
– Program Set-up, Repetition and Operating Reservation.
– Saving Interlock with Increasing, Maintaining of Temperature and Operating Time, and Saved Program Operate Continuously
• LK Labkorea

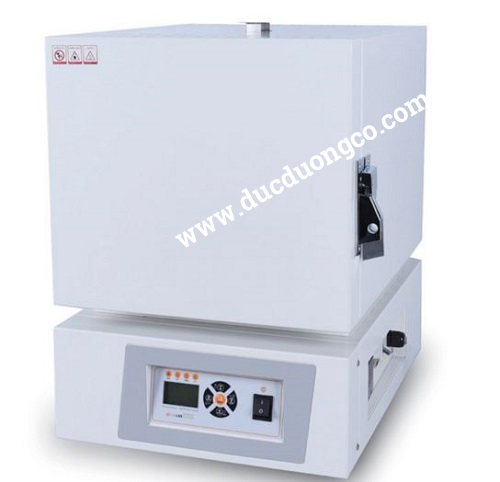

Muffle Furnace LF-MS350 Program type
Selling price:
0 ₫
Product status:
In stock
Model:
LF-MS350P-en
| Model | LF-MS230P | LF-MS350P | LF-MS513P | LF-MS550P | LF-MS627P | |
|---|---|---|---|---|---|---|
| Capacity | 3 L | 4.5 L | 12 L | 14 L | 27 L | |
| Controller | Control | Program Control | ||||
| Display | GLCD (Graphic LCD) | |||||
| Program | 2 Pattern 18 Segment | |||||
| Resolution | 1℃ | |||||
| Temperature | Range | Max. 1100℃ (Continuous Using Temperature 1000℃) | ||||
| Accuracy | ±2% | |||||
| Size(mm) | Internal | w130×d250×h90 | w150×d300×h100 | w220×d300×h200 | w250×d350×h160 | w300×d300×h300 |
| External | w380×d470×h575 | w390×d520×h585 | w450×d520×h690 | w500×d570×h630 | w550×d540×h785 | |
| Duct | Ø12 | |||||
| Material | Internal | Ceramic Fiber Board | ||||
| External | Powder Coated Steel | |||||
| Electric Supply |
Power | 1 Phase, 220VAC, 50/60 Hz | ||||
| Max Consumption |
1.8 kW (8.1 A) | 2.8 kW (12.8 A) | 4.5 kW (21 A) | 5 kW (22.8 A) | 6 kW (27.2 A) | |
| Power Line | Standard Plug | Industrial Plug | ||||
| Safety | Over Temp. & Current Protection, Automatical Fault Sensing System | |||||
