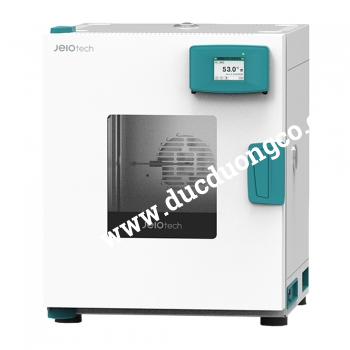

The Lab Companion OF4-10SW forced convection oven by Jeio Tech has a capacity of 3.96 cubic feet (112 liters) with a temperature range of ambient +10 to 250°C and comes with a viewing window. Lab Companion OF4-S standard forced convection ovens offer reliable temperature control and data interfaces for monitoring and control. The OF4 features horizontal air flow for excellent uniformity. Control is via a 3.5 inch touch controller with a Wait-on and Wait-off timer. An RS232 and USB port with software allow control via a PC or the optional LC Connected mobile monitoring system. Upper and lower temperature limits can be set to trigger an alarm if temperature deviates from the setpoint.
- 3.5-Inch touch controller that enables intuitive control of the device
- Wait on/Wait off timer setting allowing efficient test schedule management
- Three-point temperature calibration that ensures hightemperature accuracy over a wide temperature range.
- Available to set the upper and lower temperature limit, alarm activated to quick response when occurring the deviation.
- Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer. (±1.9°C or below at 100°C)
- RS-232/USB port and compatible software provided to enable easy device control and data management using PC. (option)
- Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)
- BMS communication port that helps monitor the device temperature on the building management system. (option)
- The upper vent hole releases effectively fume inside the oven when using local ventilation equipment. (OF4-03)
- Device surface not overheating even in operation at the highest temperature. (70°C or below, at 250°C)
- Top-rated overheating protection system. (registration KR 10-0397583)
- Over temperature limit function.
- Equivalent to IEC protection Class II.
- Recording the 12 most recent events, such as start/stop of operation, the operating time, and error occurrence.
- Stacking Kit (option) ensuring the safe fitting of one unit to another, thus doubling the amount of work done in a given area for improved space efficiency.
- Hands-free™ door system to allow users to easily open the door while carrying samples with both hands. (±1.9°C or below at 100°C)
- 2 Year Manufacturer’s Warranty
