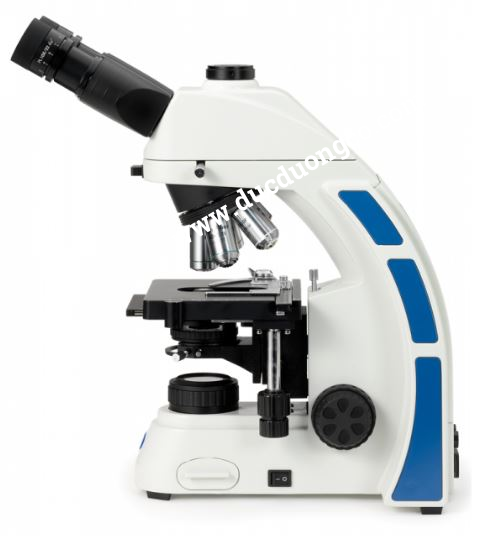

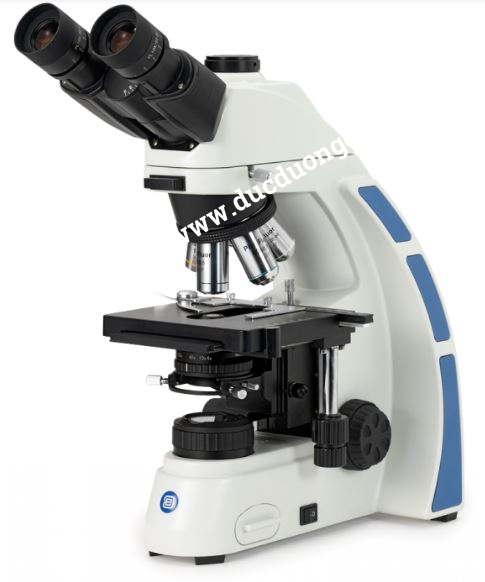

Fluorescence Microscope 3-Eye for Tuberculosis Detection

Fluorescence Microscope 3-Eye for Tuberculosis Detection

1. Product Information

• Model: OX.3237

• Manufacturer: Euromex – Netherlands

Fluorescence microscopes are used in biological and medical applications to observe specific cell components and live tissues with the aid of fluorescent dyes. One or more fluorescent dyes are applied to the sample. Upon excitation with light, the dye absorbs the energy and emits observable fluorescence light.

Experts can distinguish tumor cells from other cells, monitor biological processes, or detect the presence or absence of antibodies, etc.

The Oxion fluorescence microscope is equipped with a 100W mercury vapor lamp. The slider can accommodate up to 4 fluorescence filter cubes.

The FluoLED model features a 455 nm LED light source and a filter set, specially developed for rapid and effective tuberculosis detection using Auramine-O fluorescent dye. Other FluoLED filters are also available as options.

The optical system is treated with anti-fungal coating and anti-reflective coating for maximum optical uniformity.

Technical Specifications:

• Eyepiece: HWF 10x, wide field of view 22 mm. The eyepiece is securely locked on the observation head.

• Diopter Adjustment: ±5 diopters on both eyepieces.

• Observation Head: Siedentopf type, 3-eyepiece head, adjustable interpupillary distance from 50 to 75 mm, inclined at 30 degrees relative to the microscope body.

• Camera Port: Connection for digital camera or digital imaging system.

• Objective Revolving Nosepiece: Accommodates up to 5 objectives.

• Plan Semi-Apochromatic Fluarex Objectives:

  • 4X/0.1 Plan Optical Flat Field

  • 10X/0.25 Plan Optical Flat Field

  • S40X/0.65 Plan Optical Flat Field

  • S100X/1.28 Plan Optical Flat Field (Oil Immersion)

• Objective Protection: 40X and 100X objectives feature a spring mechanism to prevent damage to the objective and the sample.

• Lenses: All lenses are coated with anti-reflective and anti-fungal coatings.

• Stage Size: 150 x 140 mm, X-Y movement 76 x 50 mm, with 2 slide clips.

• Condenser: Combines an iris diaphragm and field diaphragm.

• Focusing Mechanism: Coaxial coarse and fine focus knobs located on both sides of the microscope body, with 200 adjustment levels, 1μm step accuracy; 200 μm per rotation. Maximum adjustment distance of 28 mm with limit stop to prevent damage to the objective and sample. Includes friction adjustment.

• Light Source: NeoLED 3 Watt lamp with brightness adjustment knob and integrated power supply. Operates on 100-240 V.

• Köhler Optical System: Provides high contrast, energy-efficient, and long-lasting illumination.

Fluorescence Illumination System and Tuberculosis Detection Accessories:

• FluoLED Light Source: 455 nm wavelength.

• Fluorescence Filter Set for Tuberculosis Detection:

  • Excitation (EX): 425-475 nm

  • Dichroic Mirror (DM): 480 nm

  • Emission (EM): 485 nm LP

• Included Accessories:

  • Main Microscope Body (1 unit)

  • Revolving Nosepiece (5-position) (1 unit)

  • Stage (1 unit)

  • NeoLED 3W Lamp (1 unit)

  • Eyepieces: HWF 10x/22 mm (1 pair)

  • Objectives: IOS 4x, 10x, S40x, S100x (1 each), and 5 ml immersion oil

  • Condenser (1 unit)

  • FluoLED Light Source (1 unit)

  • Tuberculosis Detection Filter Set (1 unit)

  • Dust Cover and Carrying Case (1 unit)

  • Standard Accessories, Power Cord

  • User Manual

​
