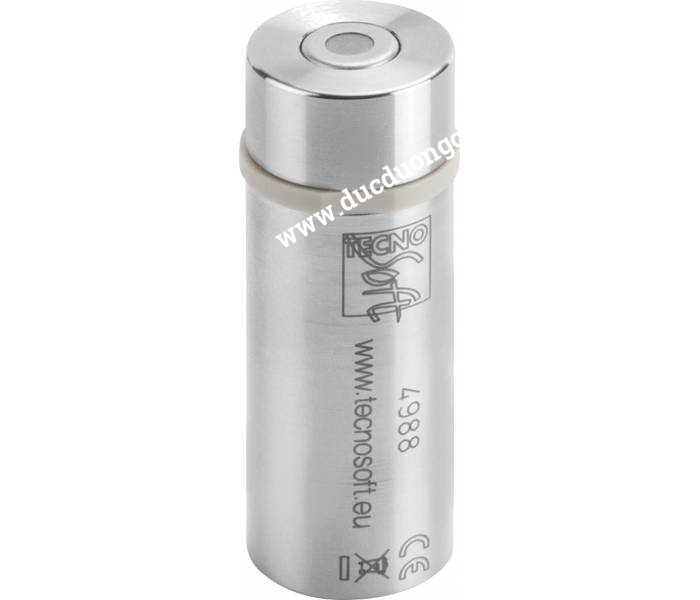

Data Logger for Temperature and Humidity

Data Logger for Temperature and Humidity

• Manufacturer: Tecnosoft – Italy

• Model: RHTEMP125 XL

• Code: TS17RHT125XL

Description:
The RHTEMP125 XL is ideal for monitoring drying processes, particularly for pasta, flour, and grain storage in harsh environments. It includes a traceable calibration certificate from Accredia (equivalent to NIST). The RHTEMP125 XL can record temperatures up to 125°C, managed via Windows software and a USB interface (DiskInterface HS, Universal Multibay).

Specifications:

• Temperature Measurement Range: -40°C to +125°C

• Material: AISI316L stainless steel, PEEK

• Temperature Resolution: 0.015°C

• Temperature Accuracy:

  • ±0.2°C (from 0°C to +60°C)

  • ±1.3°C (from -20°C to +80°C)

  • ±2.3°C (from -40°C to +125°C)

• Humidity Measurement Range: 0% to 100% RH (non-condensing)

• Humidity Resolution: 0.02% RH

• Humidity Accuracy:

  • ±1.8% RH (from 0% to 80%)

  • ±4% RH (from 80% to 90%) @23°C ±10°C

• Humidity Drift: 1% to 2% per year, depending on environmental conditions

• Memory Capacity: 10,112 data points

• Recording Interval: From 1 second or more (multiples of 1 second)

• Protection Rating: IP50

• Dimensions: 71 mm height x 17 mm Ø (with PEEK ring diameter 18 mm)

• Battery Life: Up to 14 million recordings with a 1-second interval (tested at 25°C). Battery life may be shorter in lower temperatures.

• User-Replaceable Battery: Yes

Optional Accessories:

• Data logger reading and configuration device

  • Model: TS04DIHS
