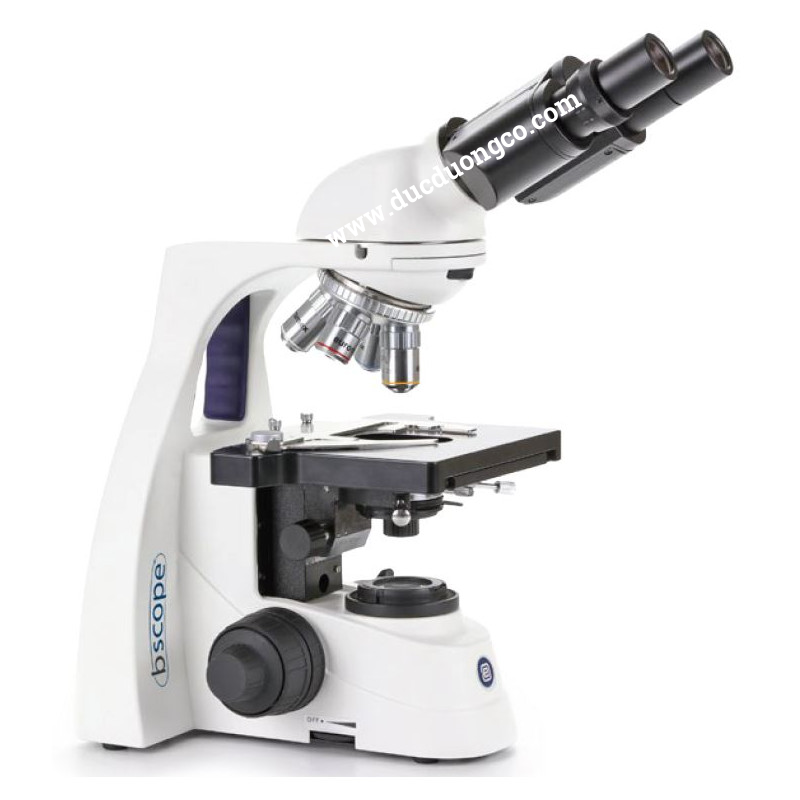

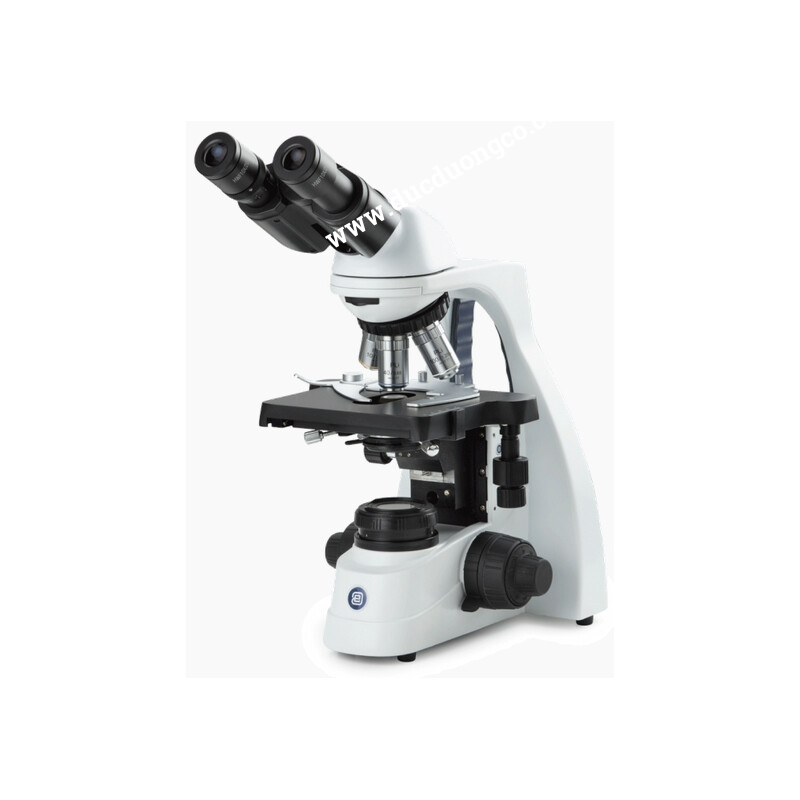

BS.1152-EPL Biological Microscope, 2-Eye Model

BS.1152-EPL Biological Microscope, 2-Eye Model

Model: BS.1152-EPL
Manufacturer: Euromex – Netherlands
Manufactured in: Netherlands

1. Product Information

The bScope series microscopes are well-equipped and widely used in secondary schools, universities, small to medium laboratories, and for veterinary applications. The design of the bScope is both functional and user-friendly, featuring adjustable eyepieces and low-position controls to reduce fatigue during extended use, providing greater comfort for the user.

Technical Specifications:

• Maximum Magnification: 1000x with 10x eyepiece and 100x objective lens.

• Eyepiece: HWF 10x/20 mm, wide field of view 20 mm.

• Observation Head: Binocular, Siedentopf type, inclined at 30°, adjustable interpupillary distance from 48 to 75 mm.

• Diopter Adjustment: On the left eyepiece, ± 5 degrees.

• Nosepiece: Revolving, 4 positions, 360° rotation. Includes E-plan EPL objectives 4x, 10x, S40x, S100x (oil immersion).

• Focusing Mechanism: Coaxial coarse and fine focus, with precision of 1.1 μm.

• Stage Size: 131 x 152/197 mm. Stage movement X-Y adjustment 77 x 36 mm.

• Condenser: Abbe N.A. 1.25, adjustable height, with iris diaphragm and filter holder.

• Illumination: 3W Neo LED light with adjustable brightness, power supply 100–240V (CE certified).

• Included Accessories: Power cord, dust cover, 5ml immersion oil.
