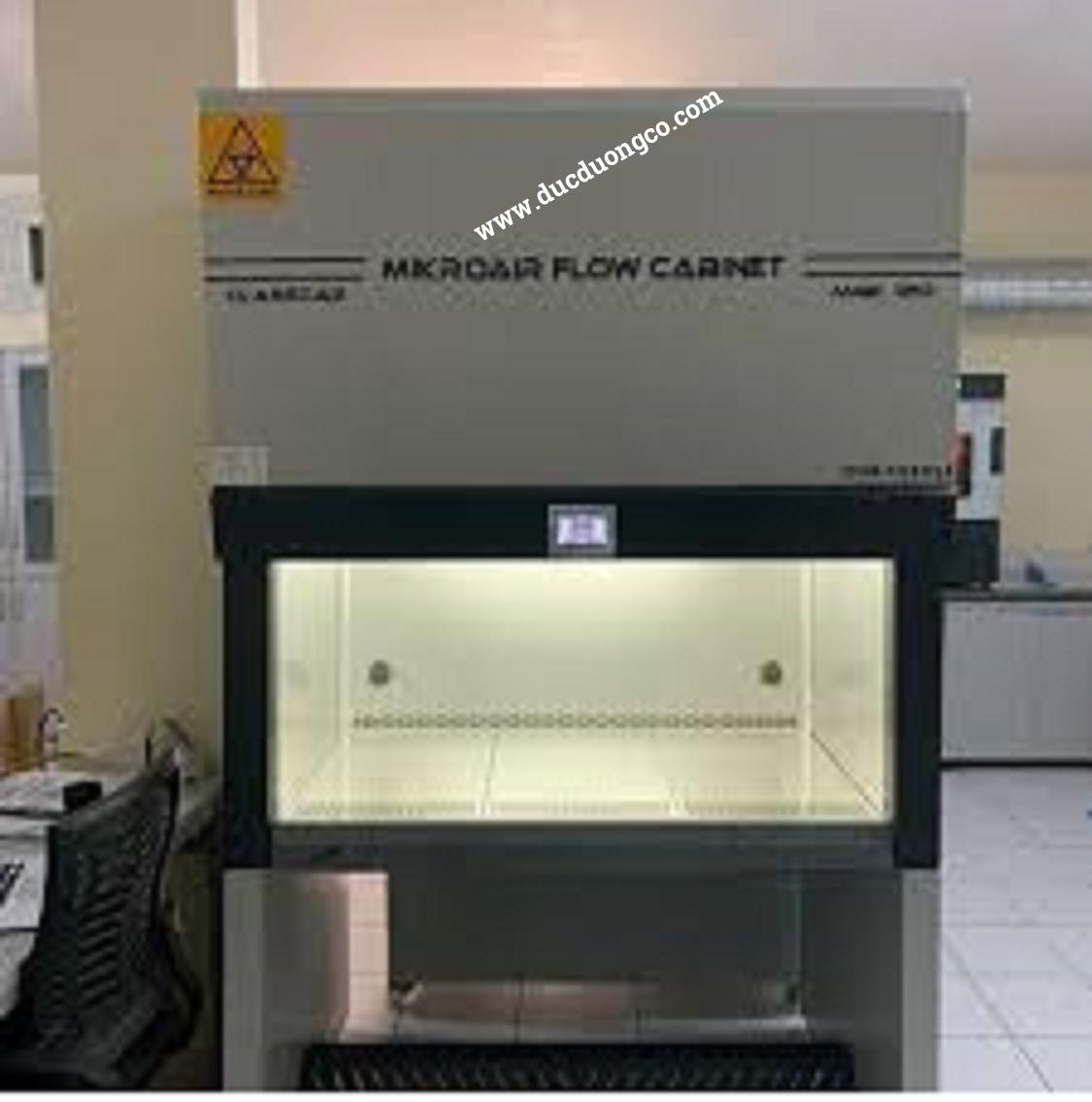

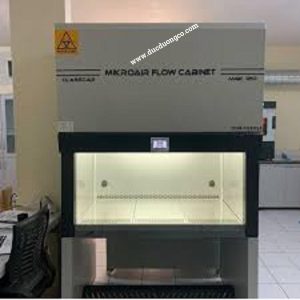

Biological Safety Cabinet Class II – A2

Biological Safety Cabinet Class II – A2

Model: MGK 90

Manufacturer: Mikrotest – Turkey

1. Product Overview

The MGK series is a high-level biological safety cabinet designed to protect the user, environment, and products. It is suitable for all research involving microorganisms with uncertain levels of hazard and risk.

• Effective Containment: Prevents dust particles generated in the work area from escaping.

• Contamination Control: Efficiently manages airborne contaminants.

• Cross-Contamination Prevention: Designed to prevent cross-contamination.

• Construction: Features an H14 aluminum casing and double-protected H14 filters.

• Fan and Motor: Direct drive, dynamically balanced on two planes for low noise, minimal vibration, and extended lifespan.

• Latest Energy-Efficient Fan Technology: Provides continuous airflow.

Technical Specifications:

• Certifications:

  • ISO 13485:2016

  • EN ISO 13485-2012

  • NSF/NASI 49

  • EN12469:2000

  • EN61010:2010

  • EN ISO 12100

  • EN ISO 14120

  • EN ISO 13849-1

  • EN 60204-1

• Internal Dimensions (ExDxH): 90 x 63 x 65 cm

• External Dimensions (ExDxH): 106.5 x 90 x 145 cm

• Airflow Velocity:

  • Inflow Velocity: 0.45 m/s

  • Downflow Velocity: 0.25 / 0.5 m/s

• Filters:

  • Main Filter (EN1822): H14 HEPA filter with 99.995% efficiency for 0.3 µm particles

  • Exhaust Filter (EN1822): H14 HEPA filter with 99.995% efficiency for 0.3 µm particles

  • Pre-Filter (EN1822): G4

• Cleanroom Class: ISO 5 – Class 100

• Exhaust Fan:

  • Suitable for 10 meters of horizontal ductwork and 3 meters of vertical ductwork

• Material: Stainless Steel 316

• Minimum Opening Height: 200 cm ± 10 mm

• Maximum Opening Height: 530 cm ± 10 mm

• Noise Levels:

  • Normal Mode: <58 dB (A)

  • Economy Mode: <52 dB (A)

• Lighting Intensity: 850-1150 Lux

• Glass Door Thickness: <6 mm

• Fan Power: 105 W

• Fluorescent Lamp Power: 50 W

• UV Lamp Power: 30 W

• Power Supply:

  • Outlet Voltage: 220-240 VAC / 16 A

  • Power Requirement: 230 VAC / 50 Hz / 2500 W / 16 A

• Weight: 205 kg
