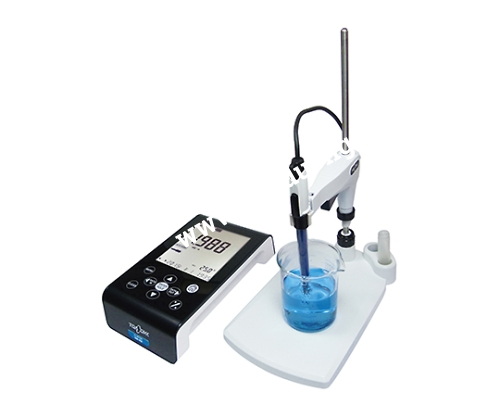

Bench Conductivity Meter DKK-TOA CM-41X

Bench Conductivity Meter DKK-TOA CM-41X

• Manufacturer: DKK – TOA

• Model: CM-41X

Product Introduction:

• The basic conductivity meter focuses on basic performance.

• Large customizable LCD screen for easy reading.

• Data memory function (stores 1000 results).

Technical Specifications:

• Measuring Method:

  • Conductivity Measurement: 2-electrode AC measuring method.

  • Temperature: Temperature resistance.

  • Conductivity measurement frequency: 80 Hz or 3K Hz, automatically selected.

  • Display: LCD screen.

• Measuring Range:

  • Conductivity Measurement: 100μS/m – 10S/m (1μS/cm – 100mS/cm) with the included electrode CT-58101B.

  • Salinity Measurement: Converted from conductivity values.

  • TDS Measurement: Converted from conductivity values.

  • Temperature Measurement: 0.0 – 100.0℃.

• Display Range:

  • Conductivity:

    • Manual or automatic range switching.

    • Specific ranges include:

      • 0.0 – 200.0μS/m (0.000 – 2.000μS/cm)

      • 0.000 – 2.000mS/m (0.00 – 20.00μS/cm)

      • 0.00 – 20.00mS/m (0.0 – 200.0μS/cm)

      • 0.00 – 200.0mS/m (0.0 – 2.000μS/cm)

      • 0.000 – 2.000S/m (0.00 – 20.00mS/cm)

      • 0.00 – 20.00S/m (0.0 – 200.0mS/cm)

      • 00.00 – 200.0S/m (0.000 – 2.000mS/cm)

  • Resistance:

    • Manual or automatic range switching.

    • Specific ranges include:

      • 0.005 – 2.000 Ω･m (0.5 – 200.0Ω･cm)

      • 0.00 – 20.00 Ω･m (0.000 – 2.000kΩ･cm)

      • 00.0 – 200.0 Ω･m (0.00 – 20.00kΩ･cm)

  • Salinity: 0.00 – 4.04% (NaCl) or 0.00 – 42.40 (PSS: seawater salinity).

  • TDS: 0 – 99.99mg/L; 0 – 999.9mg/L; 0 – 9.999g/L; 0 – 99.99g/L; 0 – 999.9g/L.

  • Temperature: -5.0 – 110.0℃.

• Repeatability (Main Unit):

  • Conductivity/Resistance/Salinity/TDS: ± 0.5% (Full Scale).

  • Temperature: ± 0.2°C.

• Temperature Compensation Range:

  • ATC (automatic temperature compensation): 0 – 100℃.

  • MTC (manual temperature compensation): 0 – 100℃.

  • OFF: No temperature compensation.

  • Temperature Calibration: 1-point calibration.

• Operating Conditions:

  • Temperature: 0 – 45℃; Humidity: 20 – 85% (no condensation).

• Data Memory: 1000 results (measured results; Time; Temperature).

• Printing Function: Can be connected to the EPS-P30 printer accessory.

• Power Supply: 4 AA batteries; USB or Adapter (110 – 240 V).

• Dimensions of the Main Unit (L x W x H): Approximately 130 x 60 x 230 mm.

• Weight of the Main Unit: Approximately 700 g.

Included Accessories:

• Conductivity electrode CT-58101B.

• 150 ml plastic cup: 1 piece.

• AA Alkaline batteries: 4 batteries.

• User manual.

Electrode Holder Accessories for Bench Meter (Main Unit not included):

• Electrode Stand: Order Code 61-8518-40.

• Electrode Holder: Order Code 61-8518-39.

• Electrode Attachment (G) for Series X: Order Code 61-8518-03.
