8-Channel Temperature Data Logger TC-Log 8 USB

8-Channel Temperature Data Logger TC-Log 8 USB

Product Information:

The TC-Log 8 USB can connect with 8 thermocouples (K, J, T, N, E, R, S, B, G, C, D) and tolerate temperatures up to 130°C. The operating range is from -60°C to 130°C.

Users can replace the battery. No additional equipment is required to communicate with the PC, as it connects directly via USB. Thermocouples are not included.

Key Features:

• Fast Response Time

• Direct Connection to PC via USB Port

• Compact Size

• Real-Time Monitoring (when connected to a PC)

• User Calibration Possible

• Complete System Includes:

  • TC-Log 8 USB Temperature Logger

  • Thermocouple Temperature Probes (K, J, T, N, E, R, S, B, G, C, D) – Not included

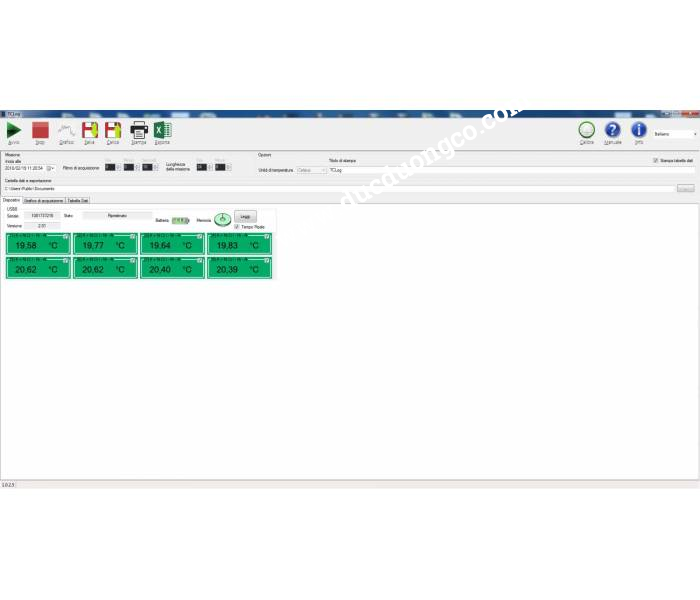

  • TC-Log Software

Specifications:

• Model: TS18TCL8U

• Dimensions: 132 x 80 x 25 mm

• Weight: 190 g

• Operating Temperature Range: -60°C to 130°C

• Material: Alumide, ABS

• Number of Ports: 8

• Thermocouple Type: K type

• Temperature Resolution: 0.15°C

• Temperature Accuracy (Logger Only, Excluding Sensor):

  • ± 0.2°C with Accredia traceable certificate (calibrated at -40/25/125°C)

  • ± 0.2°C with Accredia traceable certificate (calibrated at room temperature)

  • Accuracy: ± 0.5°C in the range 0°C ÷ 75°C; ± 1°C in the ranges -40°C ÷ 0°C and 75°C ÷ 130°C without calibration

• Stabilization Time: 20 minutes after thermal shock at 50°C

• Data Memory: 104,855 records with 1 channel, 16,383 records with all 8 channels

• Battery: AA 3.6V lithium 2Ah

• Software & Mobile App: TC-Log

• Accessories (Sold Separately): Thermocouple temperature probes (K, J, T, N, E, R, S, B, G, C, D)
