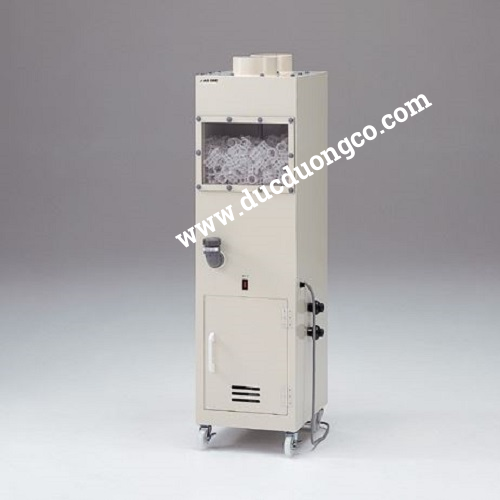

3-3019-21 Compact Scrubber SB-5N

– Body material: Hard PVC (vinyl chloride resin)
– Processing power: 7m3/min or less (*Processing power varies by gas type, concentration and cleansing liquid type.
– Filler: PP (Polypropylene) made summit ring
– Duct diameter φ150mm
– Size: 350 x 400 x 1277mm
– Weight (dry weight): 24kg
– Cleaning liquid volume: Approximately 19L
– Power cord length: 2.8m (with 3p plug, adapter )
– Caster: φ65mm nylon made (Diagonal stopper x 2 pieces)
– Accessories: φ150mm x 5m duct, φ150mm hose band x 2
– Model number: SB-5N
– Adaptive model: CD7P series, HF-800DXN
– Exhaust gas cleaning equipment
*For combined use of the compact draft CD7P series, HF-800DXN, CD9P series, Use each scrubber fan with each draft body only.
